![Molex 172201-0001 1463530](http://nguyenxuong.com/cdn/shop/products/Y1463530-01_444x303.jpg?v=1594070676)

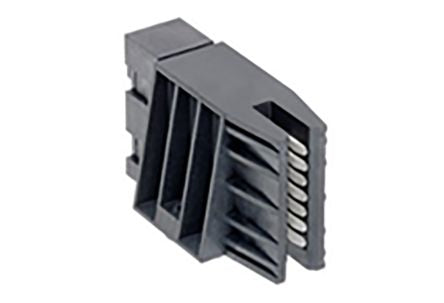

Molex 1.6mm Pitch PCB ACTA Backplane Power Connector, Female, Right Angle, 1 Row, 1 Way 172201 [172201-0001]; 146-3530
by Molex
0₫
Mã kho: 1463530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Backplane Connector Type | PCB |
Gender | Female |
Number of Contacts | 1 |
Number of Rows | 1 |
Body Orientation | Right Angle |
Housing Material | Liquid Crystal Polymer |
Pitch | 1.6mm |
Mounting Type | Through Hole |
Contact Material | Copper Alloy |
Contact Plating | Nickel, Silver, Tin |
Current Rating | 180A |
Voltage Rating | 600 V ac |
Termination Method | Solder |
Series Number | 172201 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
