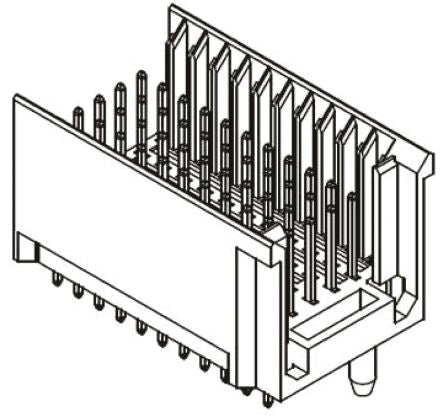

Harting Har-Bus HM Series 2mm Pitch Hard Metric Type C Backplane Connector, Male, Straight, 5 Row, 55 Way [17030552202]; 740-7382
by HARTING
0₫
Mã kho: 7407382
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Backplane Connector Type | Hard Metric Type C |
| Gender | Male |
| Number of Contacts | 55 |
| Number of Rows | 5 |
| Body Orientation | Straight |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Pitch | 2mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel, Palladium Nickel |
| Current Rating | 1A |
| Termination Method | Press-In |
| Series | har-bus HM |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
