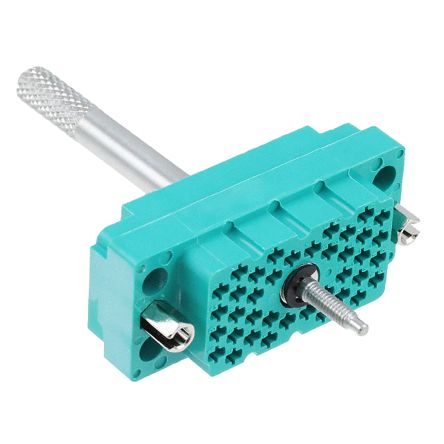

EDAC 516 Series, 38 Way Rectangular Connector Socket, 3.81mm Pitch [516-038-000-201]; 910-8361
by EDAC
0₫
Mã kho: 9108361
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Number of Contacts | 38 |
| Body Orientation | Straight |
| Housing Material | DAP |
| Pitch | 3.81mm |
| Contact Material | Phosphor Bronze Alloy |
| Contact Plating | Gold over Nickel |
| Current Rating | 8.5A |
| Voltage Rating | 2 kV ac |
| Series | 516 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -65°C |
