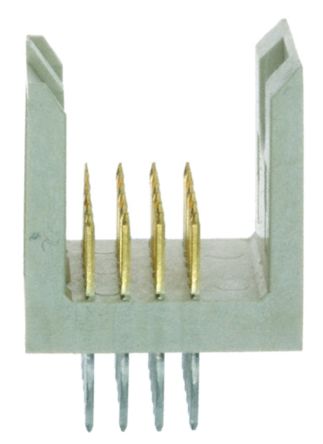

3M MP2 Series 2mm Pitch Backplane Connector, Male, Straight, 4 Row, 24 Way [MP2-H024-41P1-S-LR]; 828-2086
by 3M
0₫
Mã kho: 8282086
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Gender | Male |
Number of Contacts | 24 |
Number of Rows | 4 |
Body Orientation | Straight |
Housing Material | Liquid Crystal Polymer |
Pitch | 2mm |
Contact Material | Phosphor Bronze |
Contact Plating | Gold over Palladium Nickel over Nickel |
Current Rating | 1.5A |
Termination Method | Press-In |
Series | MP2 |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
