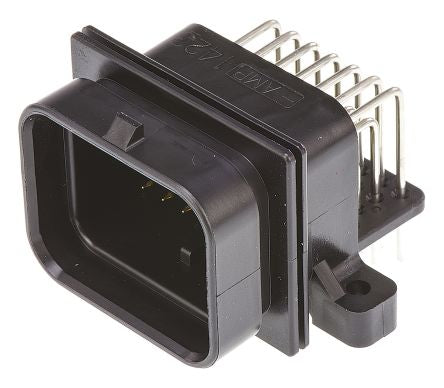

TE Connectivity Superseal Series, 4 Row 26 Way Through Hole Plug Header, with Solder Termination Method [9-6437287-8]; 726-7017
0₫
Mã kho: 7267017
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Type | Header |
| Number of Contacts | 26 |
| Gender | Male |
| Number of Rows | 4 |
| Mounting Type | Through Hole |
| Series | SUPERSEAL |
| Termination Method | Solder |
| Height | 27.9mm |
| Width | 45.5mm |
| Depth | 36.5mm |
| Minimum Operating Temperature | -40°C |
| Housing Material | PET |
| Contact Material | Brass |
| Maximum Operating Temperature | +125°C |
| Contact Plating | Gold over Nickel |
