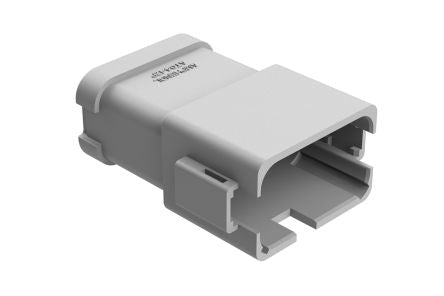

Grey (1) 12 Pin Buss 78A Nickel Plt [AT04-12PA-P021]; 195-5774
by Amphenol
0₫
Mã kho: 1955774
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 12 |
| Type | Connector |
| Gender | Male |
| Number of Rows | 2 |
| Current Rating | 78A |
| Series | AT |
| Colour | Grey |
| IP Rating | IP67 |
| Height | 22.2mm |
| Width | 40.5mm |
| Depth | 52.4mm |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Nickel Plated |
| Maximum Operating Temperature | +125°C |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series Number | AT04 |
