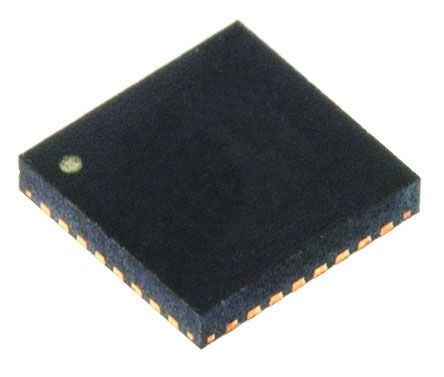

TLV320DAC3120IRHBT, Audio Converter DAC Octal 24 bit-, 192ksps Serial (I2C/SPI), 32-Pin QFN [TLV320DAC3120IRHBT]; 162-7850
0₫
Mã kho: 1627850
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 24 bit |
| Conversion Rate | 192ksps |
| Number of DAC Channels | 8 |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 32 |
| Maximum Settling Time | 4.7µs |
| Digital Interface Type | Serial (I2C/SPI) |
| Voltage Reference | External |
| Power Supply Type | Single |
| Height | 0.95mm |
| Length | 5.15mm |
| Maximum Operating Temperature | +85 °C |
| Width | 5.15mm |
| Minimum Operating Temperature | -40 °C |
| Typical Single Supply Voltage | 3.3 V |
| Dimensions | 5.15 x 5.15 x 0.95mm |
