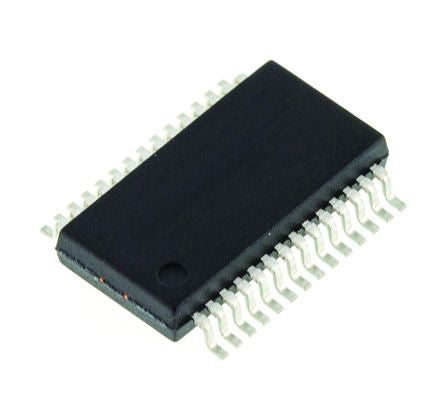

PCM1798DB, Audio Converter DAC Dual 24 bit-, 192ksps 7%FSR Serial (SPI), 28-Pin SSOP [PCM1798DB]; 922-2681
0₫
Mã kho: 9222681
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Architecture | Delta Sigma |
| Resolution | 24 bit |
| Conversion Rate | 192ksps |
| Full Scale Error | 7%FSR |
| Integral Nonlinearity Error | ±1dB |
| Number of DAC Channels | 2 |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 28 |
| Digital Interface Type | Serial (SPI) |
| Output Polarity | Bipolar |
| Voltage Reference | Internal |
| Power Supply Type | Dual |
| Dimensions | 10.2 x 5.3 x 1.95mm |
| Typical Single Supply Voltage | 5 V |
| Maximum Operating Temperature | +85 °C |
| Height | 1.95mm |
| Width | 5.3mm |
| Length | 10.2mm |
| Minimum Operating Temperature | -25 °C |
