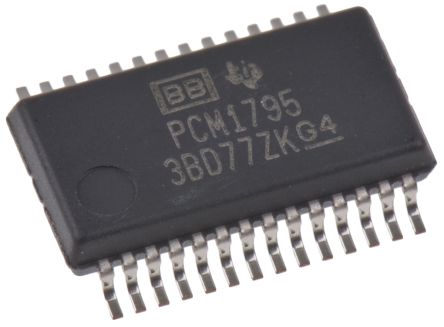

PCM1795DB, Audio Converter DAC Dual 32 bit-, 200ksps Serial (I2C/SPI), 28-Pin SSOP [PCM1795DB]; 121-9395
0₫
Mã kho: 1219395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Architecture | Delta Sigma |
| Resolution | 32 bit |
| Conversion Rate | 200ksps |
| Number of DAC Channels | 2 |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Pin Count | 28 |
| Digital Interface Type | Serial (I2C/SPI) |
| Output Polarity | Bipolar |
| Power Supply Type | Single |
| Length | 10.5mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 10.5 x 5.6 x 1.95mm |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Minimum Operating Temperature | -25 °C |
| Width | 5.6mm |
| Height | 1.95mm |
