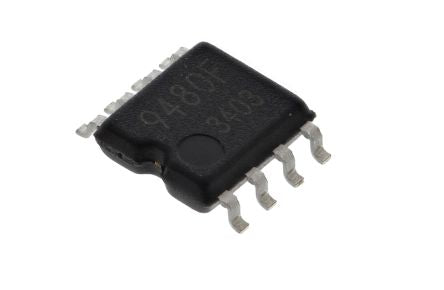

BU9480F-E2, Audio Converter DAC Dual 16 bit-, 200ksps Serial, 8-Pin SOP [BU9480F-E2]; 169-0513
by ROHM
0₫
Mã kho: 1690513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Architecture | Resistor String |
| Resolution | 16 bit |
| Conversion Rate | 200ksps |
| Number of DAC Channels | 2 |
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Pin Count | 8 |
| Maximum Settling Time | 0.06µs |
| Digital Interface Type | Serial |
| Output Polarity | Bipolar |
| Voltage Reference | External |
| Power Supply Type | Single |
| Minimum Operating Temperature | -10 °C |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Width | 4.4mm |
| Height | 1.5mm |
| Dimensions | 5 x 4.4 x 1.5mm |
| Length | 5mm |
| Maximum Operating Temperature | +70 °C |
