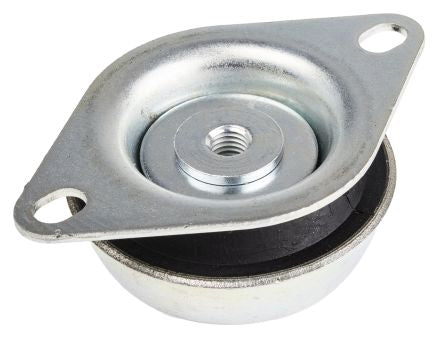

RS PRO M12 Zinc Plated Steel Anti Vibration Mount 290 Compression Load ,130mm dia. Natural Rubber +100°C; 162-3215
by RS PRO
0₫
Mã kho: 1623215
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Type | Anti-Vibration Mount |
| Thread Size | M12 |
| Diameter | 130mm |
| Foot Height | 3mm |
| Overall Height | 44mm |
| Static Load Capacity | 290 |
| Shore Hardness | 45 Shore A |
| Material | Natural Rubber |
| Metalwork | Zinc Plated Steel |
| Compression Load | 290 |
| Compression Deflection | 3.5mm |
| Maximum Operating Temperature | +100°C |
| Series | KPR |
| Foot Colour | Black |
