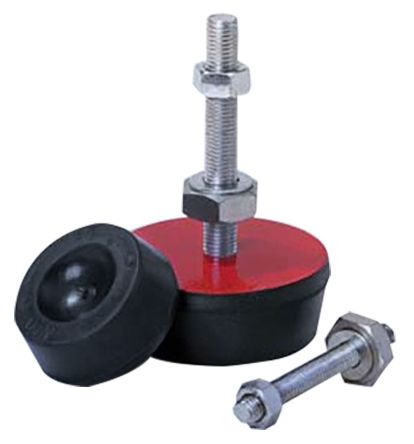

RS PRO Cylindrical M8 Zinc Plated Steel Anti-Vibration Mount 10 Compression Load ,48mm dia. Natural Rubber +100°C; 126-3899
by RS PRO
0₫
Mã kho: 1263899
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Type | Machinery Foot Mount |
Thread Size | M8 |
Diameter | 48mm |
Foot Height | 23mm |
Overall Height | 63mm |
Foot Shape | Cylindrical |
Static Load Capacity | 10 |
Material | Natural Rubber |
Shore Hardness | 65 Shore A |
Metalwork | Zinc Plated Steel |
Compression Load | 10 |
Compression Deflection | 1.5mm |
Maximum Operating Temperature | +100°C |
Foot Colour | Black |
Mounting Type | Screw-in |
Series | FMM |
