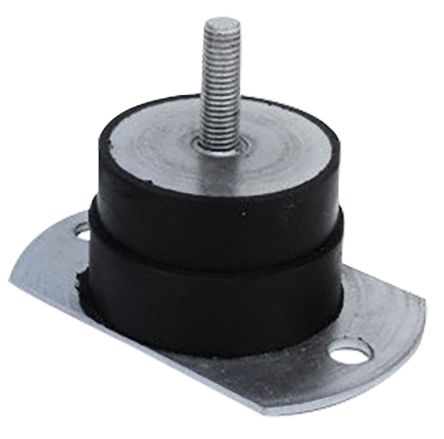

RS PRO Cylindrical M12 Zinc Plated Steel Anti-Vibration Mount 250 Compression Load ,127mm dia. Natural Rubber +100°C; 126-3891
by RS PRO
0₫
Mã kho: 1263891
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Type | Pedestal Anti Vibration Mount |
| Thread Size | M12 |
| Diameter | 127mm |
| Foot Height | 50mm |
| Overall Height | 50mm |
| Foot Shape | Cylindrical |
| Static Load Capacity | 250 |
| Material | Natural Rubber |
| Shore Hardness | 60 Shore A |
| Metalwork | Zinc Plated Steel |
| Compression Load | 250 |
| Compression Deflection | 5mm |
| Maximum Operating Temperature | +100°C |
| Foot Colour | Black |
| Series | KPN |
