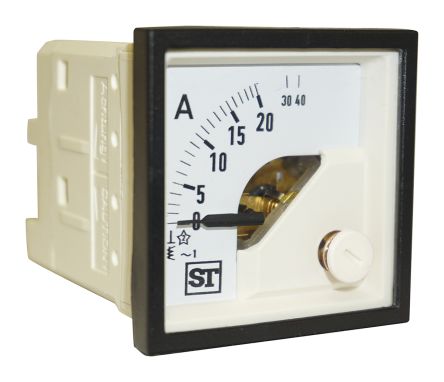

Sifam Tinsley Sigma Analogue Panel Ammeter 20A AC, 48mm x 48mm Moving Iron [EQ44-I1522N1CAW0ST]; 886-1834
0₫
Mã kho: 8861834
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Value | 20A |
| Current Type | AC |
| Moving Element | Moving Iron |
| Cutout Height | 48mm |
| Cutout Width | 48mm |
| Depth | 54mm |
| Minimum Temperature | -10°C |
| Maximum Temperature | +55°C |
| Minimum Displayed Value | 0A |
| Measurement Range | 0 → 20A |
| Series | Sigma |
| Approvals | CE, DIN 40050, DIN 43701, DIN 43718, DIN 43802, DIN 43807, DIN 46200, DIN 46282, DIN EN 60051, DIN IEC 61554, EC 51, EC 529, IEC 1010, IS:1248, IS:9249, U, 2004 / 108 / EC (EMC Directive), 2006 / 95 / EC (Low Voltage Directive) and Amendment 93 / 68 / EEC |
