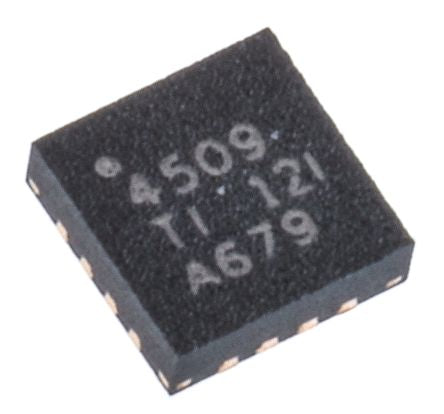

THS4509RGTT Texas Instruments, Differential Amplifier 3GHz 16-Pin QFN [THS4509RGTT]; 517-0356
0₫
Mã kho: 5170356
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 5 V |
| Typical Dual Supply Voltage | ±2.5V |
| Maximum Input Offset Voltage | 4mV |
| Maximum Input Resistance | 0.05MΩ |
| Maximum Voltage Gain | 68dB |
| Typical Gain Bandwidth Product | 3GHz |
| Number of Channels per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 16 |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.9mm |
| Height | 0.9mm |
| Maximum Operating Temperature | +85 °C |
