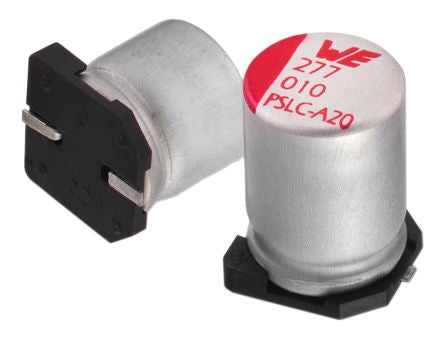

Wurth Elektronik 10μF 25V dc Aluminium Polymer Capacitor, Surface Mount 5.8 (Dia.) x 6.15mm +105°C 5.8mm 2.1mm [875105544001]; 163-5931
0₫
Mã kho: 1635931
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 5.8 (Dia.) x 6.15mm |
| Height | 6.15mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5.8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.1mm |
| Lifetime | 2000h |
| Series | WCAP-PSLP |
| Leakage Current | 600 μA |
| Equivalent Series Resistance | 30mΩ |
| Dissipation Factor | 8 |
| Ripple Current | 2.2A |
| Tolerance | ±20% |
| Polarised | Polar |
