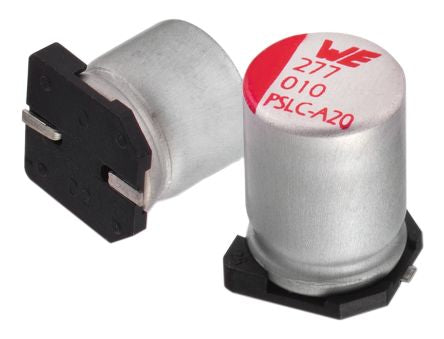

Wurth Elektronik 270μF 6.3V dc Aluminium Polymer Capacitor, Surface Mount 5.8 (Dia.) x 6.15mm +105°C 5.8mm 2.1mm [875105144009]; 163-5897
0₫
Mã kho: 1635897
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 270 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 5.8 (Dia.) x 6.15mm |
| Height | 6.15mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5.8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 2.1mm |
| Series | WCAP-PSLP |
| Ripple Current | 3A |
| Equivalent Series Resistance | 20mΩ |
| Dissipation Factor | 8 |
| Polarised | Polar |
| Tolerance | ±20% |
| Leakage Current | 300 μA |
