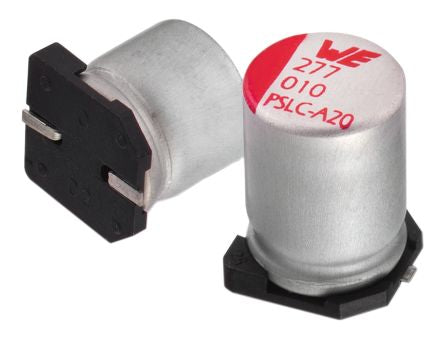

Wurth Elektronik 150μF 6.3V dc Aluminium Polymer Capacitor, Surface Mount 5.5 (Dia.) x 4.85mm +105°C 5.5mm 1.4mm [875105142006]; 163-5894
0₫
Mã kho: 1635894
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 5.5 (Dia.) x 4.85mm |
| Height | 4.85mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 1.4mm |
| Lifetime | 2000h |
| Series | WCAP-PSLP |
| Leakage Current | 300 μA |
| Tolerance | ±20% |
| Polarised | Polar |
| Equivalent Series Resistance | 30mΩ |
| Ripple Current | 1.97A |
| Dissipation Factor | 8 |
