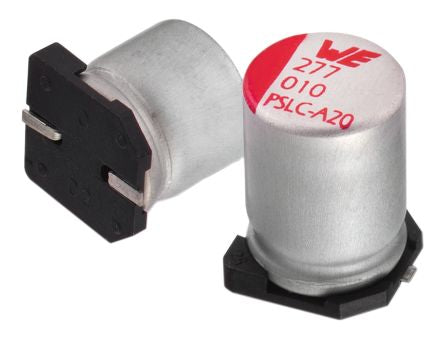

Wurth Elektronik 680μF 6.3V dc Aluminium Polymer Capacitor, Surface Mount 11.7 (Dia.) x 7.85mm +105°C 11.7mm 3.1mm [875075155008]; 163-5864
0₫
Mã kho: 1635864
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 11.7 (Dia.) x 7.85mm |
| Height | 7.85mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 11.7mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 3.1mm |
| Series | WCAP-PSLC |
| Tolerance | ±20% |
| Leakage Current | 856 μA |
| Polarised | Polar |
| Dissipation Factor | 8 |
| Ripple Current | 5.2A |
| Equivalent Series Resistance | 8mΩ |
