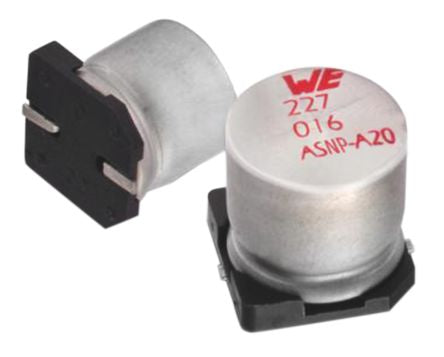

Wurth Elektronik 33μF 6.3V dc Aluminium Electrolytic Capacitor, Surface Mount 5.5 (Dia.) x 4.85mm +85°C 5.5mm 1.4mm [865250142003]; 839-5163
0₫
Mã kho: 8395163
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 33 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5.5 (Dia.) x 4.85mm |
| Height | 4.85mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 5.5mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 1.4mm |
| Lifetime | 2000h |
| Series | WCAP-ASNP |
| Ripple Current | 37mA |
| Dissipation Factor | 24 |
| Tolerance | ±20% |
| Polarised | Polar |
| Leakage Current | 10.395 μA |
