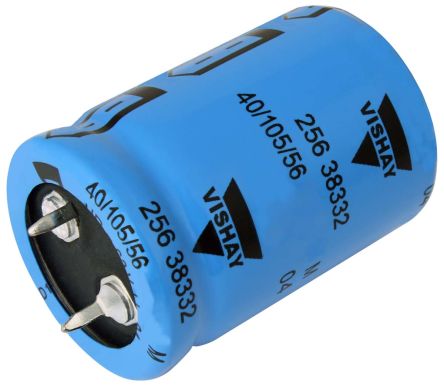

Vishay 3300μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 26 (Dia.) x 37mm +105°C 26mm 10mm [MAL225638332E3]; 875-2636
by Vishay
0₫
Mã kho: 8752636
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3300 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 26 (Dia.) x 37mm |
| Height | 37mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 26mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Lead Pitch | 10mm |
| Series | 256 |
| Tolerance | ±20% |
| Leakage Current | 1.37 mA |
| Ripple Current | 2.06A |
| Equivalent Series Resistance | 121mΩ |
