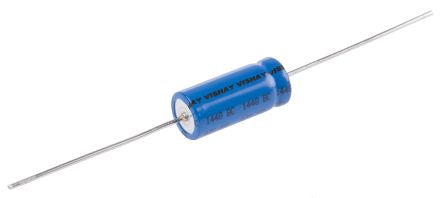

Vishay 47μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 18mm +85°C 8mm 25mm [MAL203138479E3]; 108-5478
by Vishay
0₫
Mã kho: 1085478
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 18mm |
| Height | 18mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 25mm |
| Lifetime | 2000 h, 3000 h, 80000 h |
| Series | 031 AS |
| Leakage Current | 11 μA, 22 μA |
| Ripple Current | 190mA |
| Tolerance | -10 → +50% |
| Equivalent Series Resistance | 2.71Ω |
