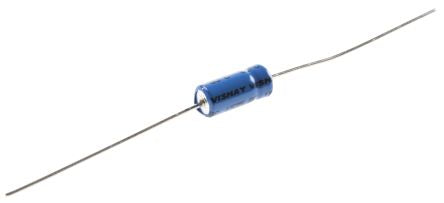

Vishay 10μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 4.5 (Dia.) x 10mm +85°C 4.5mm 10mm [MAL203036109E3]; 108-5254
by Vishay
0₫
Mã kho: 1085254
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 25 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 4.5 (Dia.) x 10mm |
| Length | 10mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 4.5mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 3000h |
| Series | 030 AS |
| Ripple Current | 50mA |
| Leakage Current | 5.5 μA, 13 μA |
| Equivalent Series Resistance | 22.3Ω |
| Tolerance | -10 to +50% |
