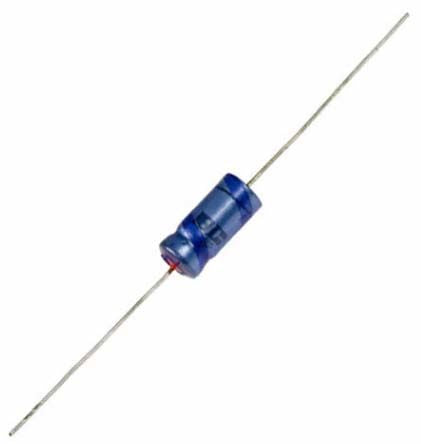

Vishay 2200μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 21 (Dia.) x 38mm +85°C 21mm 38mm [MAL202118222E3]; 108-5046
by Vishay
0₫
Mã kho: 1085046
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 21 (Dia.) x 38mm |
| Length | 38mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 21mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 8000h |
| Series | 021 ASM |
| Tolerance | ±20% |
| Leakage Current | 281 μA |
| Ripple Current | 1.78A |
| Equivalent Series Resistance | 99mΩ |
