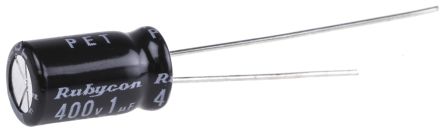

Rubycon 1μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 x 11mm +105°C 6.3mm 2.5mm [400LLE1MEFC6.3X11]; 767-2810
by Rubycon
0₫
Mã kho: 7672810
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 1 µF |
Voltage | 400 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 6.3 x 11mm |
Height | 11mm |
Minimum Operating Temperature | -40°C |
Diameter | 6.3mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 2.5mm |
Lifetime | 12000h |
Series | LLE |
Ripple Current | 24mArms |
Leakage Current | 0.03 CV + 15 μA (After 5 min), 0.1 CV + 40 μA (After 1 min) |
Tolerance | ±20% |
