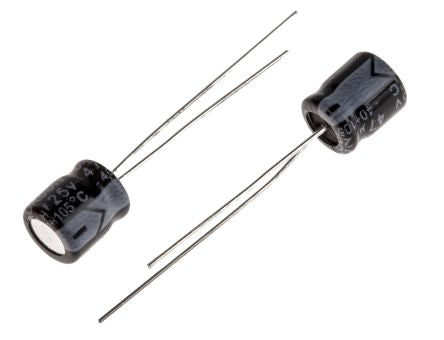

RS PRO 47μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 6 (Dia.) x 7mm +105°C 6mm 2.5mm 7mm; 707-5751
by RS PRO
0₫
Mã kho: 7075751
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 25 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6 (Dia.) x 7mm |
| Height | 7mm |
| Length | 7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Lead Pitch | 2.5mm |
| Series | RS |
| Tolerance | ±20% |
| Ripple Current | 65mA |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Polarised | Polar |
| Dissipation Factor | 0.14 |
