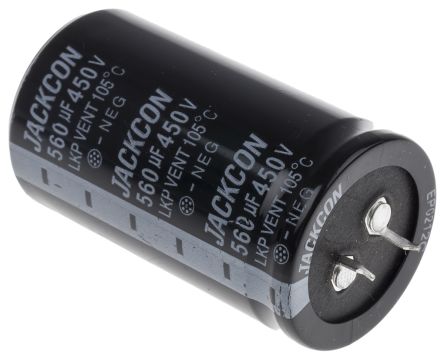

RS PRO 560μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 60mm +105°C 35mm 10mm 60mm; 706-3358
by RS PRO
0₫
Mã kho: 7063358
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 560 µF |
| Voltage | 450 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 35 (Dia.) x 60mm |
| Height | 60mm |
| Length | 60mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 35mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 10mm |
| Lifetime | 2000h |
| Series | RS |
| Polarised | Polar |
| Leakage Current | <=0.02 CV @ 5 min |
| Ripple Current | 2.3A |
| Dissipation Factor | 0.2 |
| Tolerance | ±20% |
