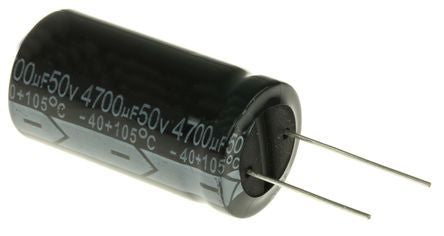

RS PRO 4700μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 22 (Dia.) x 42mm +105°C 22mm 10mm 42mm; 170-1262
by RS PRO
0₫
Mã kho: 1701262
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4700 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 22 (Dia.) x 42mm |
| Height | 42mm |
| Length | 42mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 22mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 10mm |
| Lifetime | 2000h |
| Series | RS |
| Ripple Current | 2.05A |
| Tolerance | ±20% |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Polarised | Polar |
| Dissipation Factor | 0.1 |
