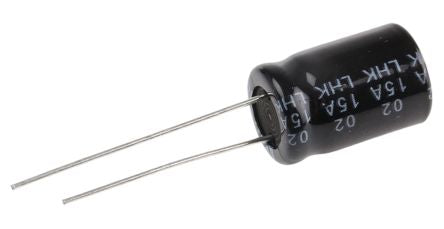

RS PRO 470μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 15mm +105°C 10mm 5mm 15mm; 170-1223
by RS PRO
0₫
Mã kho: 1701223
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 470 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 15mm |
Height | 15mm |
Length | 15mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 5mm |
Lifetime | 2000h |
Series | RS |
Dissipation Factor | 0.12 |
Ripple Current | 470mA |
Polarised | Polar |
Tolerance | ±20% |
Leakage Current | <=0.01 CV or 3 μA @ 1 min |
