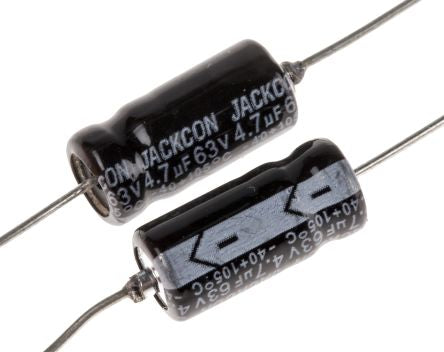

RS PRO 4.7μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 6 (Dia.) x 13mm +105°C 6mm 13mm; 170-1075
by RS PRO
0₫
Mã kho: 1701075
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6 (Dia.) x 13mm |
| Height | 13mm |
| Length | 13mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Series | RS |
| Leakage Current | <=0.02 CV or 3 μA @ 5 min |
| Polarised | Polar |
| Dissipation Factor | 0.1 |
| Tolerance | ±20% |
| Ripple Current | 29mA |
