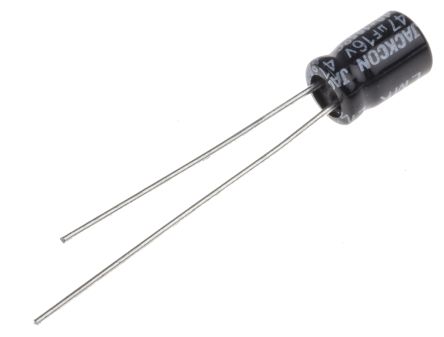

RS PRO 47μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 5 (Dia.) x 7mm +105°C 5mm 2mm 7mm; 170-1056
by RS PRO
0₫
Mã kho: 1701056
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 5 (Dia.) x 7mm |
| Height | 7mm |
| Length | 7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2mm |
| Lifetime | 1000h |
| Series | RS |
| Leakage Current | <=0.01 CV or 3 μA @ 1 min |
| Tolerance | ±20% |
| Ripple Current | 60mA |
| Polarised | Polar |
| Dissipation Factor | 0.16 |
