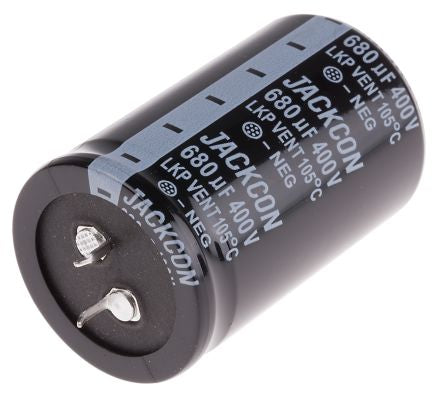

RS PRO 680μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 55mm +105°C 35mm 10mm 55mm; 170-1034
by RS PRO
0₫
Mã kho: 1701034
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 680 µF |
Voltage | 400 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 35 (Dia.) x 55mm |
Height | 55mm |
Length | 55mm |
Minimum Operating Temperature | -25°C |
Diameter | 35mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 10mm |
Lifetime | 2000h |
Series | RS |
Dissipation Factor | 0.2 |
Ripple Current | 2.37A |
Leakage Current | <=0.02 CV @ 5 min |
Polarised | Polar |
Tolerance | ±20% |
