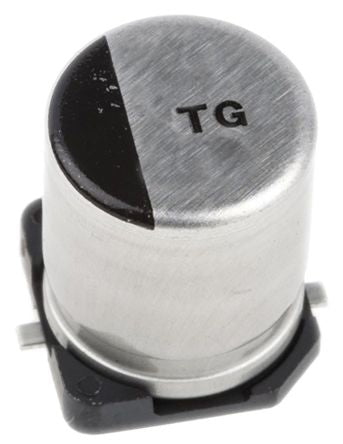

Panasonic 470μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 12.5 x 13.5mm +125°C 12.5mm [EEVTG1V471UQ]; 867-5589
by Panasonic
0₫
Mã kho: 8675589
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 12.5 x 13.5mm |
| Height | 13.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 2000h |
| Series | TG |
| Equivalent Series Resistance | 120mΩ |
| Tolerance | ±20% |
| Leakage Current | 164.5 μA |
| Ripple Current | 800mArms |
| Polarised | Polar |
