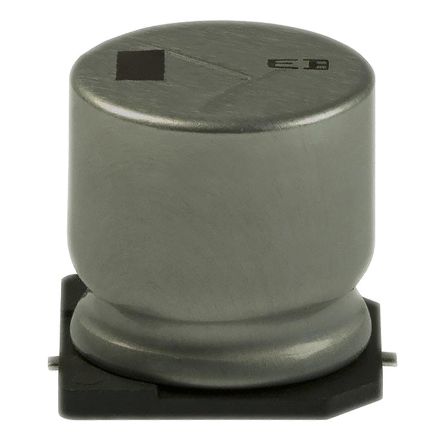

Panasonic 4.7μF 400V dc Aluminium Electrolytic Capacitor, Surface Mount 10 x 16.5mm +105°C 4.7mm 4.6mm [EEVEB2G4R7Q]; 867-5497
by Panasonic
0₫
Mã kho: 8675497
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 4.7 µF |
| Voltage | 400 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 x 16.5mm |
| Height | 16.5mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 4.7mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.6mm |
| Lifetime | 4000h |
| Series | EB |
| Leakage Current | 122.8 μA |
| Tolerance | ±20% |
| Ripple Current | 50mArms |
| Polarised | Polar |
