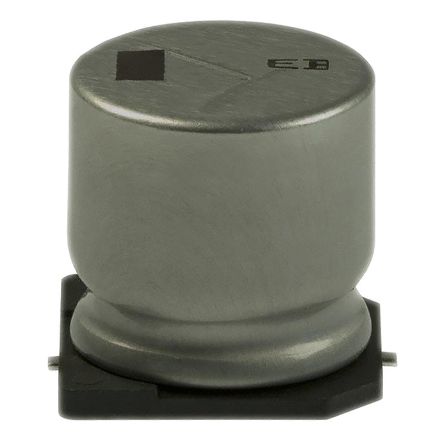

Panasonic 10μF 400V dc Aluminium Electrolytic Capacitor, Surface Mount 16 x 16.5mm +105°C 10mm 6.7mm [EEVEB2G100SM]; 166-7129
by Panasonic
0₫
Mã kho: 1667129
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 400 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 16 x 16.5mm |
| Height | 16.5mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 6.7mm |
| Lifetime | 5000h |
| Series | EB |
| Polarised | Polar |
| Leakage Current | 250 μA |
| Ripple Current | 250mArms |
| Tolerance | ±20% |
