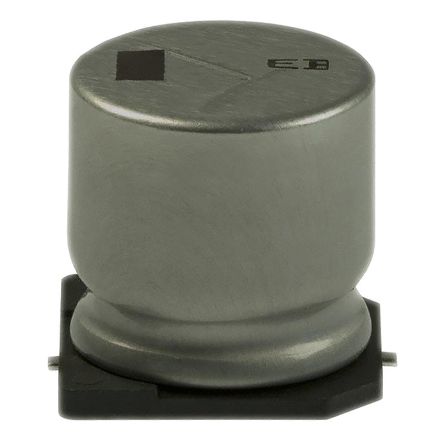

Panasonic 10μF 250V dc Aluminium Electrolytic Capacitor, Surface Mount 10 x 16.5mm +105°C 10mm 4.6mm [EEVEB2E100Q]; 166-7044
by Panasonic
0₫
Mã kho: 1667044
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 10 µF |
Voltage | 250 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 10 x 16.5mm |
Height | 16.5mm |
Minimum Operating Temperature | -25°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lifetime | 4000h |
Lead Pitch | 4.6mm |
Series | EB |
Leakage Current | 160 μA |
Tolerance | ±20% |
Polarised | Polar |
Ripple Current | 88mArms |
