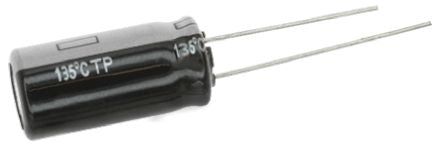

Panasonic 1800μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 31.5mm +135°C 16mm 7.5mm [EEUTP1V182]; 732-8314
by Panasonic
0₫
Mã kho: 7328314
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 1800 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 16 (Dia.) x 31.5mm |
Height | 31.5mm |
Minimum Operating Temperature | -40°C |
Diameter | 16mm |
Maximum Operating Temperature | +135°C |
Lifetime | 2000 h, 5000 h |
Lead Pitch | 7.5mm |
Series | TP RADIAL |
Tolerance | ±20% |
Leakage Current | 630 μA |
Ripple Current | 3.25A |
Equivalent Series Resistance | 18mΩ |
