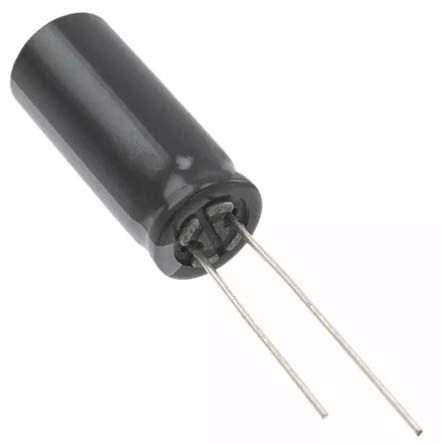

Panasonic 820μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 20mm +105°C 10mm 5mm [EEUFS1V821]; 145-8553
by Panasonic
0₫
Mã kho: 1458553
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 820 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 20mm |
Height | 20mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 5mm |
Lifetime | 10000h |
Series | FS |
Tolerance | ±20% |
Polarised | Polar |
Dissipation Factor | 0.0012 |
Ripple Current | 2180mArms |
Leakage Current | ≤0.01 CV μA |
