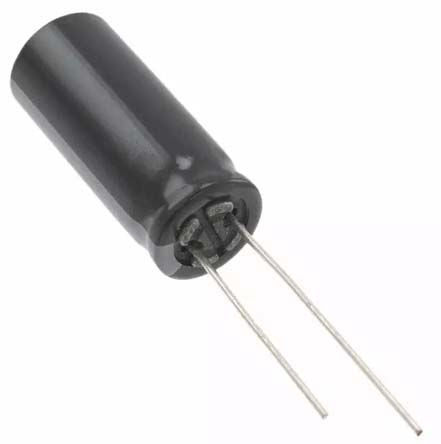

Panasonic 820μF 10V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 11.5mm +105°C 8mm 3.5mm [EEUFS1A821]; 145-8569
by Panasonic
0₫
Mã kho: 1458569
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 820 µF |
| Voltage | 10 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 11.5mm |
| Height | 11.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 6000h |
| Lead Pitch | 3.5mm |
| Series | FS |
| Polarised | Polar |
| Leakage Current | ≤0.01 CV μA |
| Tolerance | ±20% |
| Ripple Current | 950mArms |
| Dissipation Factor | 0.0019 |
