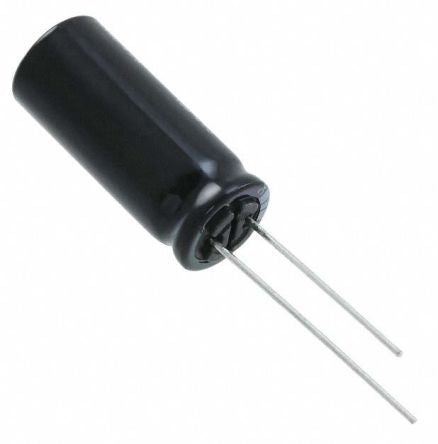

Panasonic 5600μF 10V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 30mm +105°C 12.5mm 5mm [EEUFS1A562L]; 145-8508
by Panasonic
0₫
Mã kho: 1458508
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 5600 µF |
| Voltage | 10 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 (Dia.) x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 5mm |
| Series | FS |
| Dissipation Factor | 0.0019 |
| Ripple Current | 3630mArms |
| Tolerance | ±20% |
| Leakage Current | ≤0.01 CV μA |
| Polarised | Polar |
