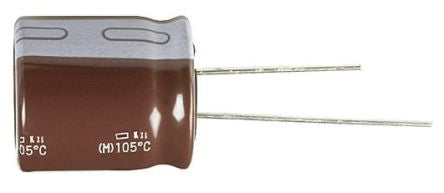

Panasonic 820μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 20mm +105°C 16mm 7.5mm [EEUFR1H821S]; 109-3250
by Panasonic
0₫
Mã kho: 1093250
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 820 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 10000h |
| Series | FR Radial |
| Tolerance | ±20% |
| Ripple Current | 2.87A |
