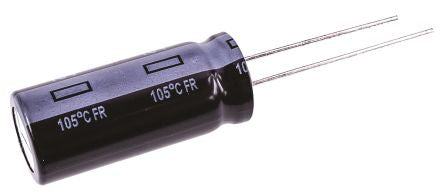

Panasonic 3300μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 30mm +105°C 12.5mm 5mm [EEUFR1C332L]; 708-3686
by Panasonic
0₫
Mã kho: 7083686
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3300 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 (Dia.) x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 5mm |
| Series | FR Radial |
| Tolerance | ±20% |
| Ripple Current | 3.63A |
