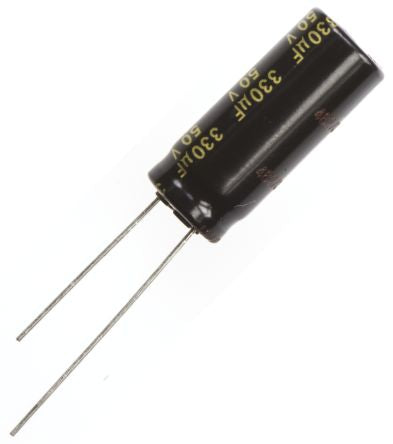

Panasonic 330μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 25mm +105°C 10mm 5mm [EEUFM1H331L]; 920-5131
by Panasonic
0₫
Mã kho: 9205131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 5000h |
| Series | FM Radial |
| Ripple Current | 2.15A |
| Tolerance | ±20% |
