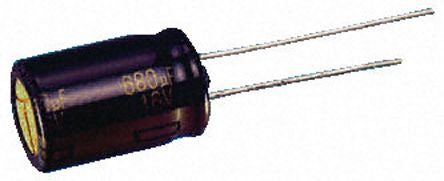

Panasonic 33μF 100V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 15mm +105°C 8mm 3.5mm [EEUFC2A330L]; 570-934
by Panasonic
0₫
Mã kho: 570934
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 33 µF |
| Voltage | 100 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 15mm |
| Height | 15mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.5mm |
| Lifetime | 2000h |
| Series | FC Radial |
| Leakage Current | 3 μA |
| Equivalent Series Resistance | 450mΩ |
| Tolerance | ±20% |
| Ripple Current | 340mA |
