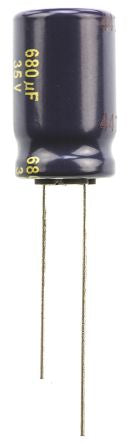

Panasonic 680μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 20mm +105°C 12.5mm 5mm [EEUFC1V681]; 108-1338
by Panasonic
0₫
Mã kho: 1081338
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 680 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 5000h |
| Series | FC Radial |
| Tolerance | ±20% |
| Equivalent Series Resistance | 38mΩ |
| Ripple Current | 1.655A |
| Leakage Current | 3 μA |
