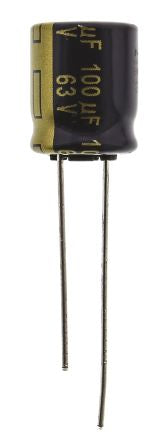

Panasonic 100μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 12.5mm +105°C 10mm 5mm [EEUFC1J101]; 315-0962
by Panasonic
0₫
Mã kho: 3150962
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 63 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 12.5mm |
| Height | 12.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 3000h |
| Series | FC Radial |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
| Ripple Current | 535mA |
| Equivalent Series Resistance | 256mΩ |
