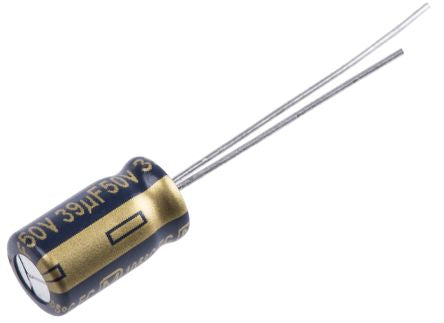

Panasonic 39μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 (Dia.) x 11.2mm +105°C 6.3mm 2.5mm [EEUFC1H390]; 572-435
by Panasonic
0₫
Mã kho: 572435
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 39 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 11.2mm |
| Height | 11.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Lead Pitch | 2.5mm |
| Series | FC Radial |
| Equivalent Series Resistance | 600mΩ |
| Leakage Current | 3 μA |
| Ripple Current | 260mA |
| Tolerance | ±20% |
