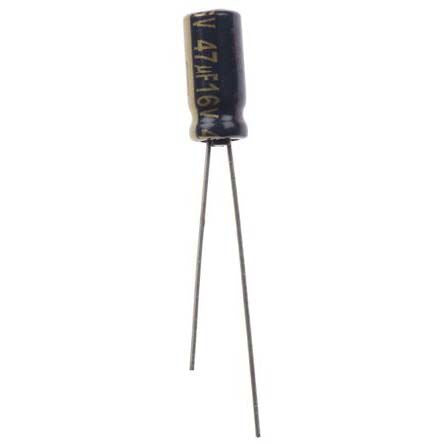

Panasonic 47μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 5 (Dia.) x 11mm +105°C 5mm 2mm [EEUFC1C470]; 919-3596
by Panasonic
0₫
Mã kho: 9193596
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 5 (Dia.) x 11mm |
| Height | 11mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2mm |
| Lifetime | 1000h |
| Series | FC Radial |
| Ripple Current | 175mA |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 800mΩ |
