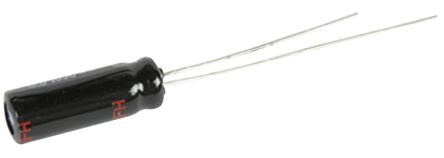

Panasonic 47μF 350V dc Aluminium Electrolytic Capacitor, Through Hole 18 (Dia.) x 20mm +105°C 18mm 7.5mm 20mm [EEUEB2V470S]; 808-8146
by Panasonic
0₫
Mã kho: 8088146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 350 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 18 (Dia.) x 20mm |
| Length | 20mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 18mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 1000 h, 5000 h |
| Series | EB(A) |
| Ripple Current | 640mArms |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
