![Panasonic EEUEB2C470 8088272](http://nguyenxuong.com/cdn/shop/products/R8088272-01_444x158.jpg?v=1594412289)

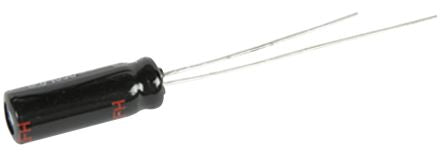

Panasonic 47μF 160V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 (Dia.) x 20mm +105°C 12.5mm 5mm 20mm [EEUEB2C470]; 808-8272
by Panasonic
0₫
Mã kho: 8088272
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 47 µF |
Voltage | 160 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 12.5 (Dia.) x 20mm |
Length | 20mm |
Minimum Operating Temperature | -25°C |
Diameter | 12.5mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 5mm |
Lifetime | 1000 h, 5000 h |
Series | EB(A) |
Ripple Current | 600mArms |
Leakage Current | 3 μA |
Tolerance | ±20% |
